Mercedes S-Class W221 Android Head Unit Installation Guide: 49-Step NTG3.0 / NTG3.5 Tutorial
This iKAGOO tutorial shows how a Mercedes-Benz S-Class W221 Android head unit installation is handled from dashboard inspection to final trim fitting. It is written for W221 owners searching for a Mercedes W221 Android screen install guide, W221 NTG3.0 / NTG3.5 CarPlay upgrade, factory COMAND retention, AUX audio routing, LVDS box connection, and no-sound troubleshooting before buying or installing the upgrade.
The W221 is not a simple universal radio replacement. A correct OEM-style Android navigation upgrade must consider the original COMAND system, factory amplifier, optical fiber path, AUX sound route, original controller, steering-wheel controls, camera signal, LVDS display path, and dashboard fitment.
Installation Evidence Used in This Guide
This guide is based on Mercedes-Benz S-Class W221 Android head unit installation reference photos, wiring-route checkpoints, and iKAGOO compatibility review experience for NTG3.0 / NTG3.5 vehicles. The goal is not only to show that the screen can be installed, but to explain where the real installation risks appear: dashboard trim removal, factory host access, optical fiber handling, AUX audio route, LVDS signal path, original controller response, factory camera behavior, and final function testing.
Evidence basis
- 49 installation reference photos organized into a step-by-step route.
- Visible W221 dashboard, trim, factory display, host-unit, AUX, optical fiber, protocol-line and LVDS installation checkpoints.
- Compatibility review logic used by iKAGOO before recommending the correct product version.
Technical review focus
- Mercedes-Benz S-Class W221 / V221 dashboard fitment.
- COMAND NTG3.0 / NTG3.5 identification before purchase.
- AUX audio, optical fiber, LVDS box, original controller and camera troubleshooting boundaries.
Važno ograničenje
- The same W221 model year can still have different audio, camera, steering position and previous wiring history.
- Final compatibility should not be decided by year range alone.
- Buyers should send real vehicle photos before ordering.
What This Guide Helps W221 Owners Decide
This section is written for Mercedes S-Class W221 owners who are already close to a buying or installation decision. Instead of treating the upgrade as a generic car stereo job, it separates three practical needs: choosing the right Mercedes W221 Android head unit, understanding the installation route, and avoiding common W221 Android screen troubleshooting problems.
Before buying the unit
- Android glavna jedinica za Mercedes W221
- Mercedes S-Class W221 Android screen
- W221 CarPlay Android Auto upgrade
- 12.3 inch W221 Android navigation
- Buy Mercedes W221 Android stereo
Before installation starts
- Mercedes W221 Android head unit installation
- W221 NTG3.0 Android screen install
- W221 NTG3.5 Android navigation retrofit
- Mercedes W221 dashboard removal guide
- W221 Android screen wiring tutorial
If a problem appears after wiring
- W221 Android screen no sound
- W221 AUX audio connection
- W221 LVDS box connection
- W221 factory camera not working
- W221 original COMAND retention
| Owner Question | Practical Answer | Zašto je važno |
|---|---|---|
| Is the W221 Android head unit plug-and-play? | No, not in the simple accessory sense. Professional installation is recommended. | The route includes dashboard trim removal, factory display removal, host-unit access, AUX, optical fiber, LVDS and function testing. |
| What is the main installation risk? | No sound, black screen, unstable LVDS image, camera issue, or original controller response failure. | Most problems come from wiring route, signal route, audio route, or wrong compatibility assumptions. |
| What must be checked before buying? | NTG3.0 / NTG3.5, dashboard, controller, audio system, camera route, LHD/RHD and connector photos. | Model year alone is not enough to confirm the correct product version. |
| Za koga je ova nadogradnja najbolja? | W221 owners who want a full cockpit refresh, not only the cheapest CarPlay option. | The value is in the wide-screen Android interface, OEM-style fitment, correct integration and support path. |
Vehicle Fitment and Buyer Boundary
This guide applies to Mercedes-Benz S-Class W221 owners researching a 12.3-inch Android head unit / Android navigation screen upgrade for factory NTG3.0 or NTG3.5 systems. It is useful for S350, S400 Hybrid, S450, S500, S550, S600, S63 AMG, S65 AMG, and V221 long-wheelbase owners, but final compatibility must still be checked from the actual car.
| Main vehicle | Mercedes-Benz S-Class W221 / Mercedes S-Class W221 / Mercedes S-Klasse W221 / Mercedes Classe S W221 |
|---|---|
| Common system focus | COMAND NTG3.0 / NTG3.5, verified by original menu and dashboard photos rather than model name only. |
| Upgrade searched by buyers | Mercedes W221 Android head unit, W221 Android screen, W221 CarPlay upgrade, 12.3 inch W221 Android navigation, W221 Android stereo installation. |
| Photos to send before ordering | Dashboard front photo, factory screen photo, COMAND menu photo, center console controller photo, LHD/RHD layout, audio/amplifier information, camera status, and connector photos if available. |
| Not this tutorial | This is not a digital instrument cluster replacement tutorial. It is for the Android head unit / Android navigation screen installation route. |
| Confirmation Item | Why It Matters for W221 Android Head Unit Fitment |
|---|---|
| NTG3.0 / NTG3.5 system | Affects the LVDS display path, original COMAND behavior, wiring route and product configuration. |
| Original dashboard and screen shape | Confirms whether the physical screen frame and dashboard mold match the vehicle. |
| Center console controller | Helps confirm whether original control-panel behavior can be retained and how protocol-line switching should be handled. |
| AUX / AMI availability | Affects Android audio output and common no-sound troubleshooting. |
| Factory amplifier and optical fiber | Incorrect fiber handling or amplifier route can create no-sound or factory audio communication issues. |
| Fabrčka stražnja kamera | Camera retention depends on the original camera route and the selected kit. |
| LHD / RHD layout | Steering position can affect dashboard trim fitment, cable route and installation access. |
| Previous aftermarket wiring | Old modifications can change the expected wiring route and increase installation risk. |
49-Step Mercedes W221 Android Head Unit Installation Tutorial
The tutorial below keeps every installation image as a separate step. The layout is organized by professional logic: first check the original dashboard, then open the trim, remove the factory display and host unit, handle the W221 audio/display/control wiring, install the large-screen structure, test the functions, and finally close the dashboard.
Phase 1: Confirm the target result and original dashboard layout

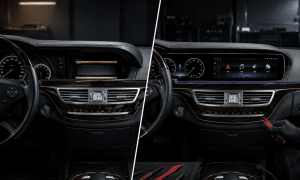

Review the W221 Android head unit installation route
This first reference image sets the target installation context: a Mercedes S-Class W221 Android navigation upgrade, not a universal screen swap.
- Check: original dashboard style and expected large-screen fitment.
- Zašto je važno: buyer expectation must match the actual W221 installation route.
Confirm the original center dashboard before teardown
Before tools touch the trim, compare the original screen, COMAND area, center controller, and dashboard shape with the supported W221 Android head unit route.
- Check: NTG3.0 / NTG3.5 menu, LHD/RHD layout, controller style.
- Zašto je važno: wrong system identification can cause wrong harness or wrong LVDS/audio route.
Release the left-side dashboard trim
Start from the side trim to open the first dashboard access path. Use a plastic trim tool and release clips gradually.
- Check: panel resistance, clip direction, trim age.
- Risk: forcing old trim can break clips or scratch visible surfaces.
Remove the first exposed fixing screw
After the trim is open, remove the visible screw before moving to the next panel. Do not pry a locked panel harder.
- Check: screw type and original position.
- Professional habit: store screws by location for correct reassembly.
Release the right-side dashboard trim
Open the right trim after the left side has been loosened. This balances the dashboard access and reduces uneven stress.
- Check: hidden clips and retaining points.
- Zašto je važno: clean trim removal affects the final OEM-style appearance.
Remove the next dashboard retaining screws
Continue removing screws in the exposed dashboard path. This prepares the vent and lower display area for safe removal.
- Check: screws around trim edges and panel joints.
- Risk: missed screws can crack trim when pulled.
Phase 2: Open vents, climate panel, and screen trim
Remove the air-conditioning vent carefully
The vent area opens the lower screen access path. Keep the trim tool angle shallow to avoid marks on the visible dashboard edge.
- Check: vent clip release and surrounding trim pressure.
- Risk: broken vent clips or scratched trim.
Remove the vent-area fixing screws
These screws lock the next trim section. Removing them first prevents unnecessary force on the climate-control panel and screen trim.
- Check: screw depth and location.
- Zašto je važno: the W221 dashboard has layered trim, not one loose panel.
Release the climate-control panel
Move the panel only after its retaining points are free. The climate panel must be protected because it remains part of the final dashboard layout.
- Check: connector position and panel alignment.
- Risk: loose panel or trapped cable during reassembly.
Remove the lower trim under the factory screen
This lower trim covers the next fastener path for the factory display area. Remove it before touching the upper screen trim.
- Check: trim edge and retaining points.
- Zašto je važno: damaged lower trim reduces the finished OEM-style look.
Start releasing the upper dashboard trim
The upper trim must come out evenly before the factory display can be accessed. Do not bend one side while the other side is still locked.
- Check: clip release across the full trim line.
- Risk: uneven trim tension or panel deformation.
Continue releasing the top trim evenly
Work across the trim in small movements. A controlled release keeps the panel straight and protects the visible cabin finish.
- Check: whether the trim moves evenly.
- Professional habit: stop if one side resists more than the other.
Finish removing the upper trim
Once the trim is free, store it on a protected surface. Scratches here are visible after the Android screen is installed.
- Check: trim clips and mounting tabs.
- Zašto je važno: the final large-screen installation needs clean trim around it.
Remove the original control-panel screws
These screws secure the original control section. Removing them prepares the panel for safe movement without pulling on hidden connectors.
- Check: screw location and cable slack.
- Risk: pulling the panel while still fixed can damage mounts.
Phase 3: Remove factory control panel, display, and dashboard section
Remove the original control panel
The factory control panel is part of the W221 interaction path. Move it carefully and note the connector positions before unplugging anything.
- Check: connector locks and original cable route.
- Risk: original controller failure if connectors are forced.
Remove the factory screen fixing screws
Support the screen while removing screws. The screen should not hang from its cables after the retaining screws are removed.
- Check: display fastener positions.
- Zašto je važno: factory screen removal exposes the display signal route.
Unplug and remove the factory display
Release the display connector lock before removing the original screen. Do not pull from the cable body.
- Check: connector orientation and locking tab.
- Risk: damaged display connector can create black-screen issues.
Remove the instrument-area fastening screws
The large-screen structure needs access around the instrument and display area. Remove these screws before moving the dashboard section.
- Check: screw positions around the instrument area.
- Risk: forcing this section can affect final screen alignment.
Unplug and remove the original dashboard section
Take photos before unplugging. This helps iKAGOO or the installer review the factory connector path if troubleshooting is needed later.
- Check: factory connector positions and cable length.
- Zašto je važno: traceable wiring reduces diagnostic time.
Phase 4: Open the center control and factory host-unit area
Remove the first center-control retaining screw
The center control area must be opened to reach deeper COMAND and host-unit wiring. Start with the visible retaining screw.
- Check: screw location and panel movement.
- Risk: panel stress if only one side is released.
Remove the second center-control retaining screw
Remove the paired screw before lifting the center panel. This keeps the panel from twisting during removal.
- Check: both sides are fully released.
- Professional habit: keep paired screws together.
Remove the original central control panel
Lift the panel with controlled pressure and check wiring slack. The factory controller may still be used after the Android screen upgrade.
- Check: cable route and connector tension.
- Risk: original controller malfunction from loose or strained wiring.
Pry out the CD / host trim board
This trim board covers the factory host area. Protect the surface because it remains visible after reassembly.
- Check: clip direction and trim edges.
- Zašto je važno: clean trim work supports a professional final result.
Remove the first factory host-area screw
The host unit must be fully released before wiring access. Do not pull the factory unit forward while screws remain installed.
- Check: host screw position and bracket hold.
- Risk: bent bracket or strained factory wiring.
Remove the second factory host-area screw
Release the opposite retaining point to free the host unit evenly. This reduces pressure on the unit and surrounding trim.
- Check: both screw points are open.
- Zašto je važno: even release protects the factory COMAND unit.
Remove the host trim panel
Removing this panel creates working room for the host unit and the Android head unit transfer wiring route.
- Check: trim clips and cable clearance.
- Risk: loose trim or noise if clips are damaged.
Loosen the original host-unit screws
Support the factory host unit while loosening screws. The wiring behind the unit should not carry the unit’s weight.
- Check: cable slack behind the factory unit.
- Risk: pulled optical fiber or connector damage.
Remove the original host unit for wiring access
This is the access point for the most important integration work: optical fiber, AUX audio, transfer cable, protocol line, and LVDS signal.
- Check: factory connector layout before unplugging.
- Zašto je važno: most no-sound or no-image problems start in this area.
Phase 5: Handle optical fiber, AUX audio, protocol line, and LVDS box
Handle the original optical fiber cable
W221 factory audio and communication can depend on the optical fiber path. Keep the fiber seated and routed correctly.
- Check: fiber connector position and bend radius.
- Risk: no sound or factory audio communication issues.
Connect the Android head unit transfer cable
The transfer cable bridges the factory system and the Android screen. Confirm connector direction and pin alignment before locking it.
- Check: plug orientation and full seating.
- Risk: unstable power, original function loss, or control failure.
Connect the AUX audio port
AUX routing is a key W221 Android screen no-sound checkpoint. Confirm the AUX connection and source selection before closing the dashboard.
- Check: AUX plug, audio source, and amplifier route.
- Risk: Android boots normally but has no audio output.
Switch the navigation speaker / sound route
This step defines how Android navigation and system audio are routed. Test sound output before reinstalling any trim.
- Check: selected route and speaker output.
- Zašto je važno: wrong sound route is a common installation complaint.
Switch the original control-panel protocol line
The protocol line affects factory controller behavior. Do not switch by guesswork; verify the supplied wiring route and the exact W221 configuration.
- Check: protocol connector and original controller response.
- Risk: original control knob or button behavior may fail.
Connect the external LVDS box
The LVDS box is responsible for display signal integration. Secure the box and confirm the cable is not loose or under tension.
- Check: LVDS cable seating and image stability.
- Risk: black screen, flicker, or unstable original display path.
Phase 6: Install the large-screen structure and original instrument-area parts
Install the large-screen mounting bracket
The bracket controls final screen stability and alignment. Fit it squarely before placing the Android screen assembly.
- Check: bracket position, screw holes, and dashboard seating.
- Risk: uneven screen fit or vibration noise.
Remove original instrument-area screws
This prepares the instrument area for transfer or integration with the large-screen structure.
- Check: screw location and instrument panel support.
- Zašto je važno: correct transfer keeps the cockpit layout coherent.
Remove the meter decorative frame
The decorative frame affects the finished visual transition between the original instrument section and the Android screen structure.
- Check: frame clips and finish condition.
- Risk: poor alignment or visible gaps after installation.
Load the original instrument panel into the large-screen mold
This step keeps the original instrument relationship while allowing the wider Android screen to integrate into the W221 dashboard.
- Check: panel seating and connector clearance.
- Zašto je važno: this separates an OEM-style installation from a loose tablet-style result.
Install the original instrument hardware bracket
Lock the bracket evenly so the instrument section remains stable and does not shift after the dashboard trim is installed.
- Check: screw locking and bracket stability.
- Risk: vibration, misalignment, or trim pressure.
Plug in the original gauges and Android screen
Before tightening the screen, confirm all connectors have slack and are not trapped behind the display structure.
- Check: gauge connector, Android screen connector, cable pressure.
- Risk: intermittent function after driving vibration.
Lock the large Android screen screws
Tighten the screen only after confirming fitment, connector seating, and cable clearance. A clean final result depends on both wiring and mechanical alignment.
- Check: flush fit, screw tension, cable clearance.
- Risk: uneven screen gap or cable damage.
Phase 7: Function test, reassembly, and final installed result
Reinstall the climate-control panel after testing
Do not reinstall this panel until screen power, touch response, image stability, and basic audio output have been checked.
- Check: panel seating and connector status.
- Risk: unnecessary rework if testing was skipped.
Lock the climate-panel screws
Use the correct screws in the correct positions. Overtightening can deform the trim or make the panel sit unevenly.
- Check: screw position and panel flushness.
- Zašto je važno: reassembly quality affects customer trust.
Reinstall the air-conditioning outlets
Reinstall the vents after confirming the surrounding trim is seated correctly and no wire is trapped behind the opening.
- Check: vent clip lock and dashboard edge alignment.
- Risk: loose vent or visible panel gap.
Install the Android screen decorative top cover
The top cover completes the OEM-style visual line. Check the fit from both driver and passenger angles before locking it.
- Check: cover alignment and edge fit.
- Zašto je važno: this is one of the first details the owner notices.
Lock the decorative top-cover screws
Secure the cover after confirming alignment. The goal is a firm, clean fit without gaps or pressure marks.
- Check: screw tightness and cover stability.
- Risk: rattles or visible misalignment after driving.
Install the screw-hole cover
This finishing piece hides installation marks and completes the cabin finish. Small details matter on an S-Class interior.
- Check: cover seating and trim surface.
- Zašto je važno: it prevents the retrofit from looking unfinished.
Inspect the final trim close-up
Check gaps, screen seating, panel flushness, and any pressure marks. The final trim should look deliberate and professional.
- Check: screen edge, top cover, vent fit, and lower trim.
- Risk: poor fit reduces buyer confidence even if electronics work.
Confirm the completed W221 Android head unit result
The finished result should provide a modern wide-screen interface while keeping the correct W221 integration route confirmed before purchase.
- Check: Android boot, touch, sound, camera, steering-wheel controls, original controls, and sleep/wake behavior.
- Buyer action: order only after your exact W221 photos are reviewed.
Function Test Checklist Before Closing the Dashboard
A Mercedes W221 Android head unit installation is not complete when the screen turns on. It is complete only after the original vehicle functions, Android functions, audio route, display signal, camera behavior, and control response are checked before final trim closure.
Test prije konačnog sklapanja
- Android screen boot and touch response.
- Wireless CarPlay / Android Auto connection if supported by the selected unit.
- AUX audio output and selected audio source.
- LVDS image stability with no flicker or black screen.
- Original COMAND display path if supported by the kit.
- Factory camera display if equipped.
- Steering-wheel controls if supported.
- Original controller and center panel response.
- Ignition sleep / wake behavior.
Do not close the trim if
- The Android screen has no sound.
- The display has no image or unstable LVDS signal.
- The original control panel does not respond.
- The factory camera does not display correctly.
- Steering-wheel buttons are not recognized.
- The LVDS box or transfer cable is loose.
- Any connector is under tension.
- Any warning appears after connection.
Common Mercedes W221 Android Screen Problems After Installation
Mercedes W221 Android screen has no sound
First check the AUX audio connection, selected audio source, navigation speaker route, amplifier path, and optical fiber handling. Do not close the dashboard until Android audio and navigation audio are confirmed.
W221 Android screen has no image or unstable image
Recheck the LVDS box, display cable, power connection, and cable pressure. A black screen or flickering image should be treated as a wiring or signal issue, not ignored.
Factory camera does not show
Factory camera retention depends on the original camera route and the selected kit. Send the factory camera view, rear wiring photo, and short video to iKAGOO if the image does not appear.
Original controller does not respond
Check protocol-line switching, transfer cable seating, and original control-panel connector position. Do not assume every W221 uses the same control route.
About iKAGOO: Compatibility-First OEM-Style Car Electronics Upgrades
iKAGOO focuses on OEM-style automotive electronics upgrades for owners who want a modern cockpit without turning the vehicle into a risky universal wiring project. For Mercedes-Benz S-Class W221 owners, the value is not only the Android screen itself. The real value is the combination of vehicle-specific compatibility review, correct product selection, installation-risk awareness, and after-sales troubleshooting support.
For a W221 Android head unit upgrade, iKAGOO does not treat “Mercedes W221 2006–2013” as enough information. The original COMAND system, NTG3.0 / NTG3.5 menu, factory dashboard layout, center console controls, optical fiber path, AUX audio route, LVDS display signal, factory camera, steering-wheel controls, and previous wiring history can all affect the final installation result.
Proces kupnje usmjeren na kompatibilnost
Before recommending the correct Mercedes W221 Android head unit, iKAGOO asks buyers to provide real vehicle photos. This reduces wrong-harness risk and helps identify whether the car matches the expected NTG3.0 / NTG3.5 installation route.
- Dashboard and original screen photo.
- COMAND menu photo.
- Center console controller photo.
- Audio, camera, and connector information if available.
OEM-style upgrade philosophy
iKAGOO’s goal is a modern upgrade that still respects the original vehicle. A good W221 Android navigation retrofit should look integrated, keep the dashboard clean, and avoid unnecessary irreversible modification when the correct kit and installation route are used.
- Modern wide-screen Android interface.
- Factory-style dashboard appearance.
- Clear installation boundary.
- Function testing before final reassembly.
Support after installation starts
If the installer meets no sound, black screen, unstable LVDS image, camera issue, or original control response problem, iKAGOO can review installation photos or short videos and guide the next troubleshooting direction.
- AUX and sound-route review.
- LVDS and display signal check.
- Optical fiber and transfer cable review.
- Camera and steering-wheel control troubleshooting.
Final Buying Judgment: iKAGOO Three Indicators for This W221 Upgrade
After the 49-step installation evidence, the buying judgment becomes clearer: this Mercedes W221 Android head unit upgrade has strong cockpit value, but it must be purchased and installed as a compatibility-sensitive OEM-style retrofit, not as a simple universal Android screen.
Potreba za nadogradnjom
Uvjerljiv argument za nadogradnju
This upgrade has strong value for W221 owners who want a modern cockpit, larger navigation display, wireless CarPlay / Android Auto, Bluetooth media, app navigation, and a more current driving interface than the original COMAND system.
- Current level: Snažan argument za nadogradnju.
- Best buyer: W221 owners keeping the car and wanting a real cockpit refresh.
- Deduction reason: not the best choice for buyers who only want the cheapest CarPlay module.
- Buyer meaning: worth buying if the goal is a full visual and usability upgrade.
- Standard: Standard nužnosti nadogradnje iKAGOO
Kompatibilnost s originalnim vozilom
Photo-Confirmed Pass Requirement
W221 compatibility cannot be decided only by “2006–2013 S-Class” or “NTG3.0 / NTG3.5.” The target pass level is 95/100 after vehicle photo confirmation. Without dashboard, COMAND, audio, camera, LVDS, AUX, and connector photos, the final score should not be treated as confirmed.
- Current level: 95/100 target after correct vehicle confirmation.
- Not final until: real W221 dashboard, COMAND menu, controller, audio, camera, and connector photos are checked.
- Main deduction risk: market version, amplifier, camera route, LHD/RHD layout, or previous aftermarket wiring.
- Buyer meaning: send photos before purchase to avoid wrong harness, no sound, no image, or original control failure.
- Standard: iKAGOO Original Vehicle Compatibility Standard
Razina jednostavnosti instalacije
L4 • Professional Installation Recommended
This is not a simple plug-in accessory job. The tutorial shows deep dashboard trim removal, factory display removal, host-unit access, optical fiber handling, AUX audio routing, navigation speaker switching, protocol-line switching, external LVDS box connection, bracket fitting, and function testing.
- Current level: L4 — Professional Installation Recommended.
- Recommended installer: professional car electronics installer or experienced Mercedes retrofit technician.
- Deduction reason: deep trim work, optical fiber, AUX, LVDS, protocol line, and function testing.
- Stop condition: connector mismatch, no sound, black screen, unstable LVDS image, camera failure, or original controller not responding.
- Standard: iKAGOO Installation Difficulty Guide
| Indicator | Score / Level | Razlog | Buyer Action |
|---|---|---|---|
| Potreba za nadogradnjom | 88/100 • Strong Upgrade Case | The original W221 COMAND interface is dated compared with a 12.3-inch Android screen with navigation, CarPlay / Android Auto, Bluetooth media, and app support. | Worth buying if the owner wants a real cockpit refresh and plans to keep the vehicle. |
| Kompatibilnost s originalnim vozilom | 95/100 target • Photo-confirmed pass requirement | W221 fitment depends on NTG3.0 / NTG3.5 confirmation, dashboard layout, audio system, optical fiber, AUX, LVDS, camera, and original controls. | Send dashboard, COMAND menu, controller, screen, audio, camera, and connector photos before ordering. |
| Razina jednostavnosti instalacije | 58/100 ease • L4 Professional Installation Recommended | The work includes deep trim removal, factory host access, wiring-sensitive signal routing, bracket fitting, and function testing before reassembly. | Use a professional installer. Do not close the dashboard until sound, image, camera, controls, and LVDS stability are tested. |
Technical Review Note
This Mercedes W221 Android head unit installation guide was reviewed by the iKAGOO Technical Team for vehicle-specific Android head unit compatibility, dashboard fitment, AUX / optical fiber audio routing, LVDS signal path, factory camera retention, original control behavior and installation-risk boundaries.
| Recenzirao | iKAGOO tehnički tim |
|---|---|
| Technical focus | Mercedes-Benz W221 Android head unit compatibility, NTG3.0 / NTG3.5 confirmation, AUX audio route, optical fiber handling, LVDS box connection, factory camera behavior and original controller response. |
| Zadnja provjera | July 10, 2026 |
| Buyer recommendation | Send real vehicle photos before ordering. Do not rely only on model year, trim name or marketplace compatibility claims. |
| Relevant iKAGOO pages | Kompatibilnost i instalacija · Pravila jamstva · Povrat novca i povrat robe · O iKAGOO |
FAQ: Mercedes W221 Android Head Unit Installation
Does this Android head unit fit every Mercedes S-Class W221?
Ne. W221 compatibility must be confirmed from the exact car. The original dashboard, COMAND version, audio system, camera route, connector layout, steering position, and previous wiring modifications can change the correct installation route.
Is a Mercedes W221 Android screen plug and play?
No, not in the simple-accessory sense. This tutorial shows deep dashboard removal, factory display removal, original host access, optical fiber handling, AUX audio routing, protocol-line switching, LVDS box connection, bracket fitting, and full function testing.
Can I install a W221 Android head unit by myself?
Usually not recommended for first-time DIY users. This is closer to an L4 professional installation because the dashboard and wiring route are sensitive. A professional car electronics installer is safer.
Why does my Mercedes W221 Android screen have no sound?
Most no-sound cases should be checked through AUX routing, selected audio source, navigation speaker route, amplifier path, and optical fiber handling. Do not close the dashboard until sound is confirmed.
Why does the W221 Android screen show no image?
Check the LVDS box, display cable, power connection, and cable pressure. A black screen or unstable image usually means the signal path needs review before trim closure.
Will the original COMAND system still work?
It depends on the selected kit and vehicle configuration. Original system behavior must be confirmed before ordering and tested during installation.
Will the factory reverse camera work after the Android upgrade?
It depends on the factory camera route and integration method. Send camera information and test the camera before final trim reassembly.
What photos should I send before buying the Mercedes W221 Android head unit?
Send the dashboard, original screen, COMAND menu, center console controller, LHD/RHD layout, audio/amplifier information, camera status, and connector photos if available. These photos help iKAGOO confirm the correct W221 route before purchase.
What should I do before the installer closes the dashboard?
Test sound, image, touch, camera, steering-wheel controls, original controller response, COMAND display behavior if supported, LVDS stability, and sleep / wake behavior. If one function fails, stop and check the wiring route before final reassembly.
What is the best Android head unit upgrade for Mercedes S-Class W221?
The best option is a vehicle-specific Mercedes W221 Android head unit confirmed by real car photos, not a universal screen. The correct unit should match the original COMAND NTG3.0 / NTG3.5 system, dashboard shape, AUX audio route, LVDS signal path, camera setup, and original control behavior.
Can a Mercedes W221 keep factory controls after an Android screen upgrade?
Yes, factory controls may be retained when the correct kit and wiring route are used. However, original controller response, steering-wheel controls, COMAND behavior, and camera switching must be tested before final dashboard reassembly.
Why does a Mercedes W221 Android head unit have no sound after installation?
The most common causes are wrong AUX routing, wrong audio source selection, amplifier path issues, optical fiber handling problems, or incomplete transfer cable connection. Sound should be tested before the dashboard is closed.
Do I need to send photos before buying a Mercedes W221 Android head unit?
Da. Send the dashboard photo, original screen photo, COMAND menu photo, center console controller photo, LHD/RHD layout, audio system information, camera status, and connector photos if available.
Final Recommendation for W221 Owners
If your goal is only to see whether a Mercedes W221 Android head unit can physically fit, this tutorial is enough to show that the installation is possible. If your goal is to buy the right unit and avoid no-sound, no-image, camera, COMAND, or controller problems, the correct next step is a photo-based compatibility review before ordering.
For Mercedes S-Class W221 / S-Klasse W221 / Classe S W221 owners, iKAGOO recommends confirming the original NTG3.0 / NTG3.5 system, dashboard shape, audio route, optical fiber path, camera status, and control-panel configuration first. After that, the Mercedes W221 Android head unit product page becomes the correct buying path.
Add comment
